Model 135

Highlights

  • Designed and manufactured in Wiltshire, England.
  • Unique octagonal polygon case design.
  • Tough tool-watch construction, yet lightweight and comfortable to wear.
  • Shock proof, shatter proof, and anti-magnetic.
  • Automatic self-winding 24 jewel mechanical movement.

Specification

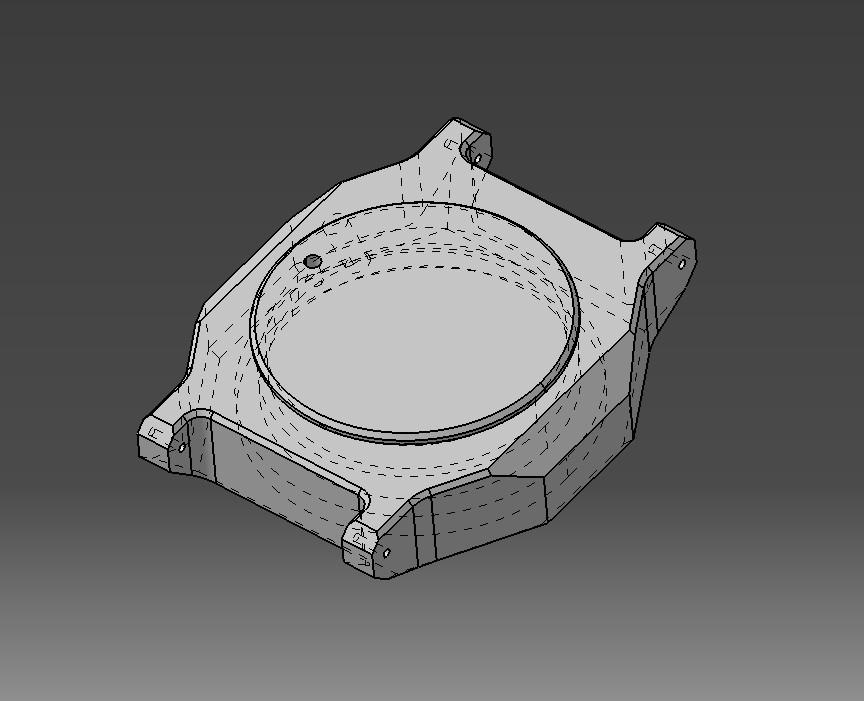

Case

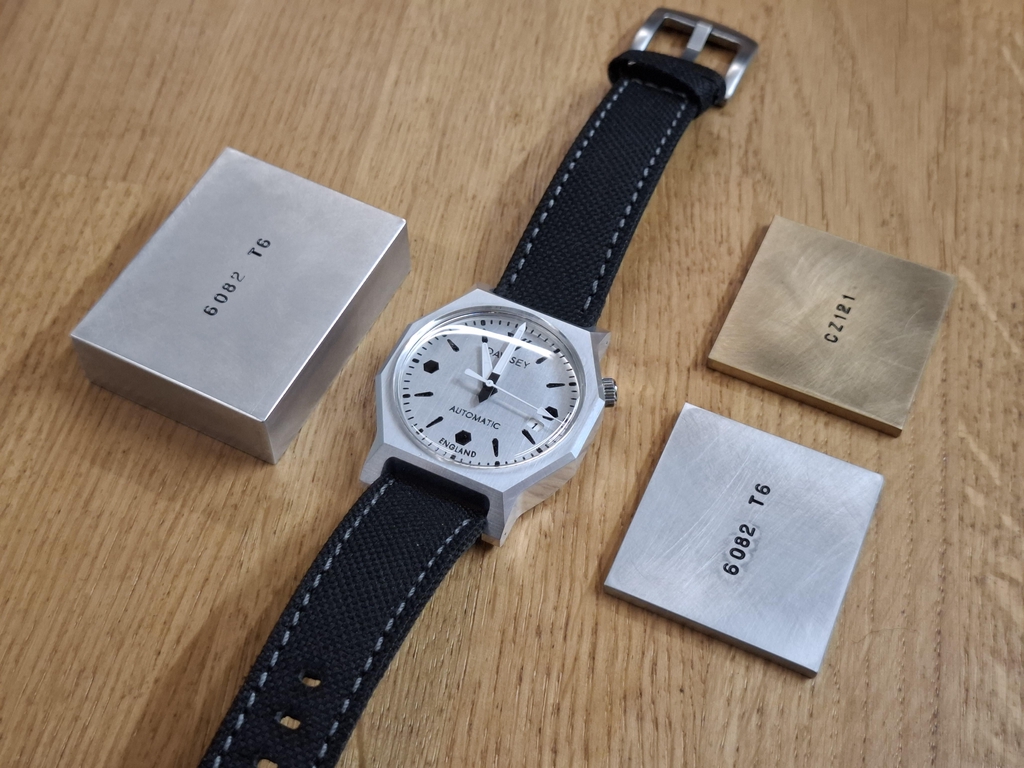

  • Fully machined in-house from a billet of lightweight structural grade 6082 T6 alloy, offering high strength and excellent corrosion resistance. Lightly finished by hand, retaining some machining marks.
  • Solid uni-body monocoque construction.

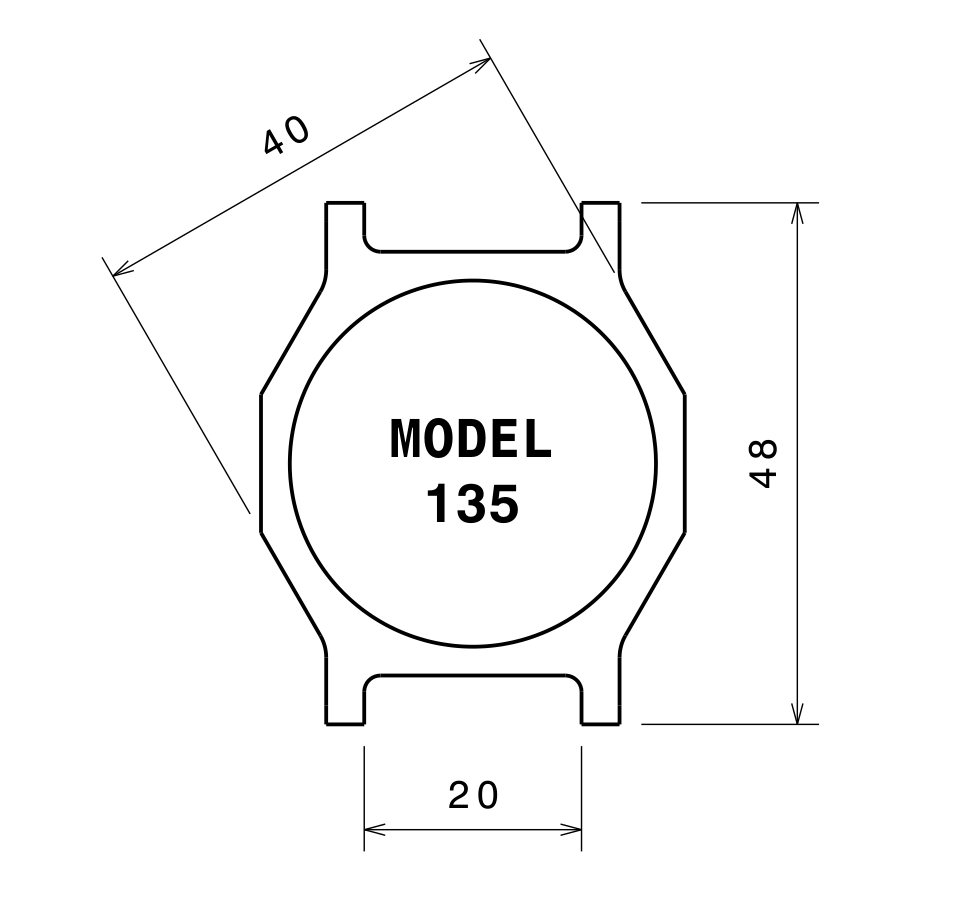

  • 40mm case size (measured diagonally, excluding crown).
  • 14mm thickness (including crystal).
  • 48mm lug-to-lug measurement, suited to all wrist sizes.
  • Through-drilled lugs for easy strap changes.
  • Screw-down stainless steel crown, positioned at two o’clock for comfort wear during wrist articulation.

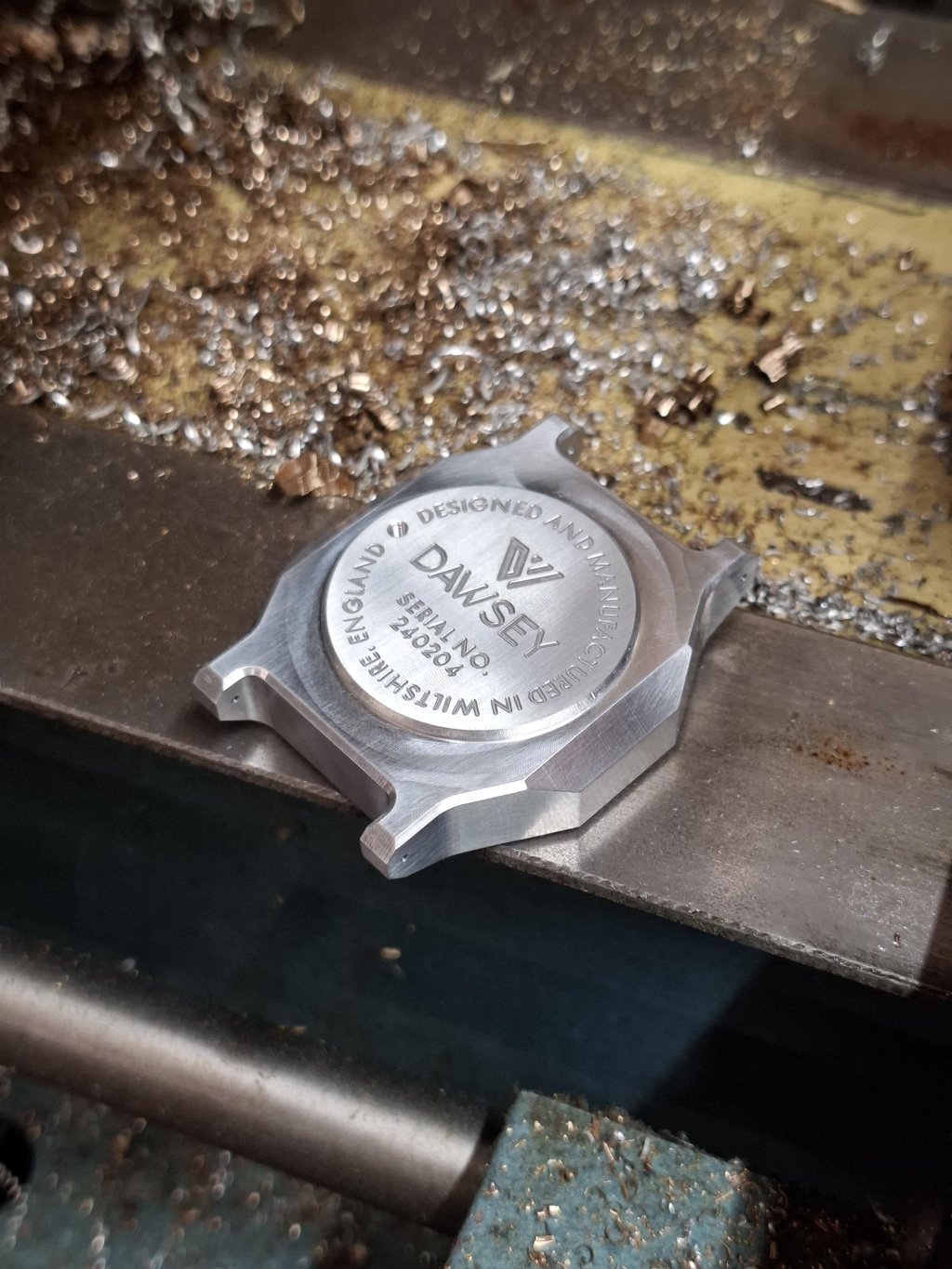

  • Deep engraved case-back, individually serialised.

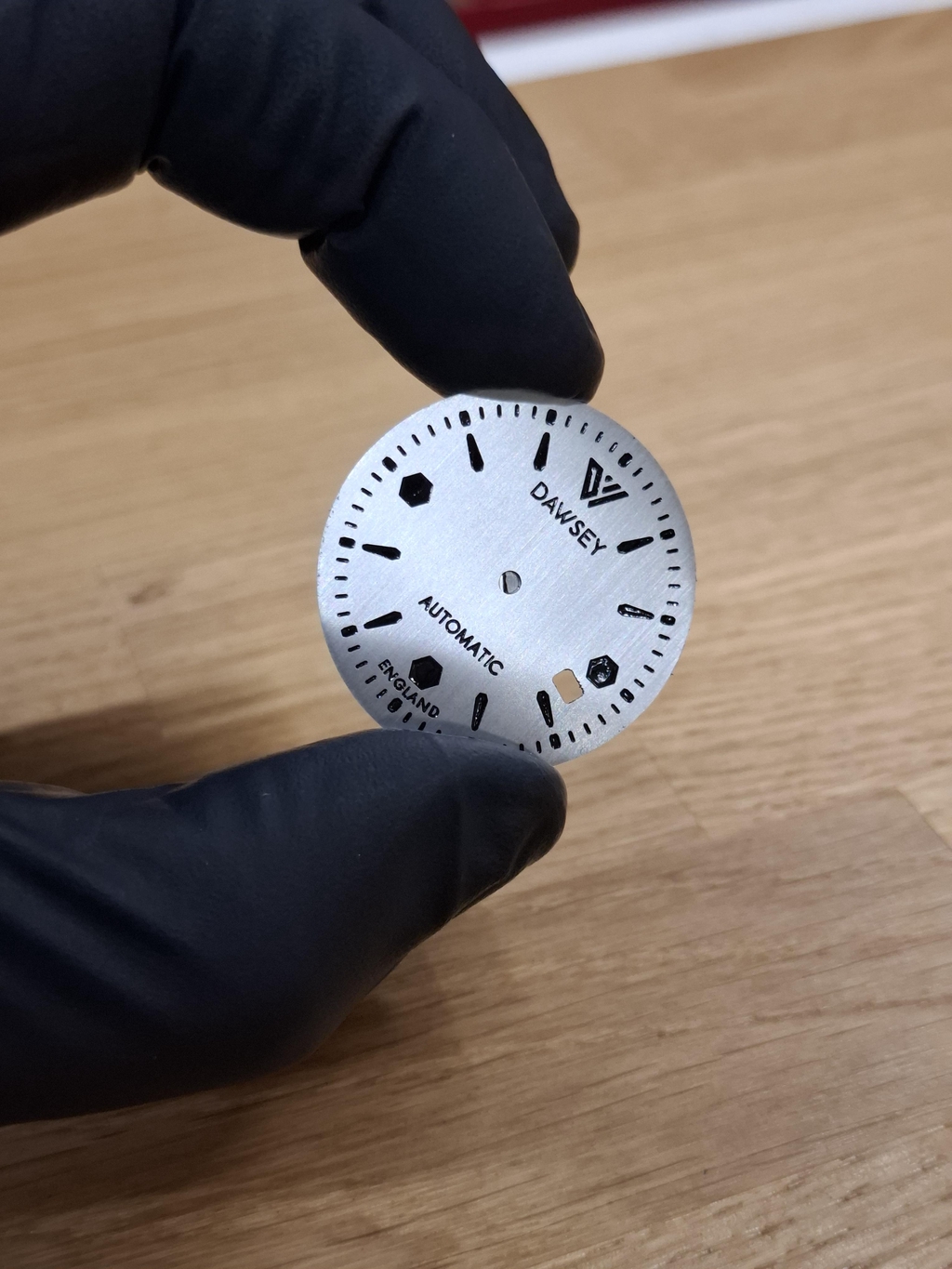

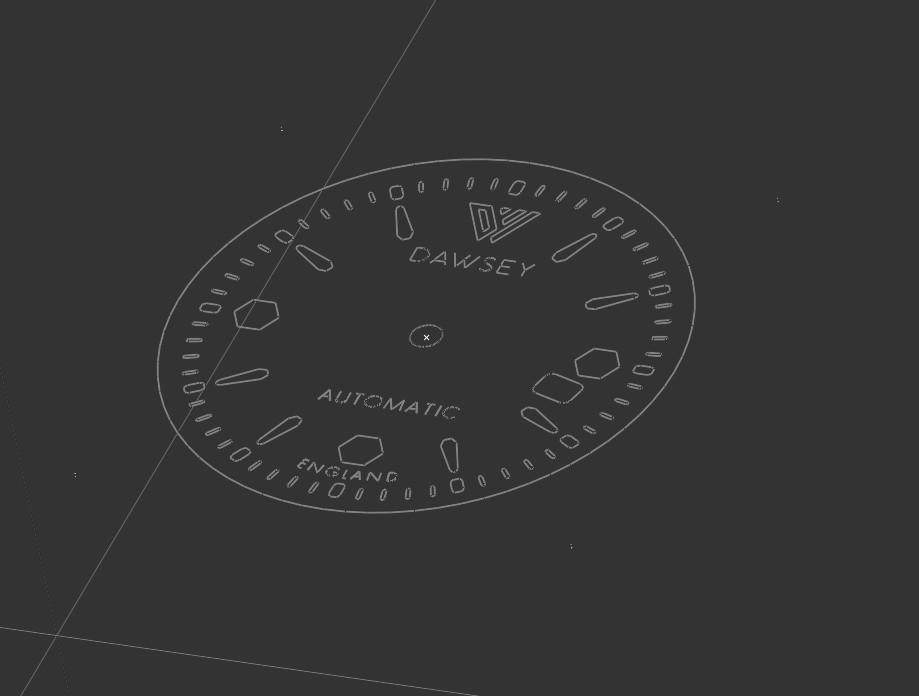

Dial

  • Fully machined in-house from the same material as the case. Finished by hand.
  • Unique design with radially tapered indices and hex markers at 3, 6, and 9 o'clock positions.
  • Deep engraved and hand-filled enamel markers.
  • Date window positioned between 3 and 4 o’clock markers.

Hands

  • Hour, minute, and sweeping second hands.
  • All hands applied with non-radioactive alkaline rare earth metal phosphorescent “lume” (silicate-aluminate oxide, doped with europium ions).

Crystal

  • “High-domed” for easy viewing at acute angles.
  • Shatter resistant acrylic.
  • Optical quality.

Movement

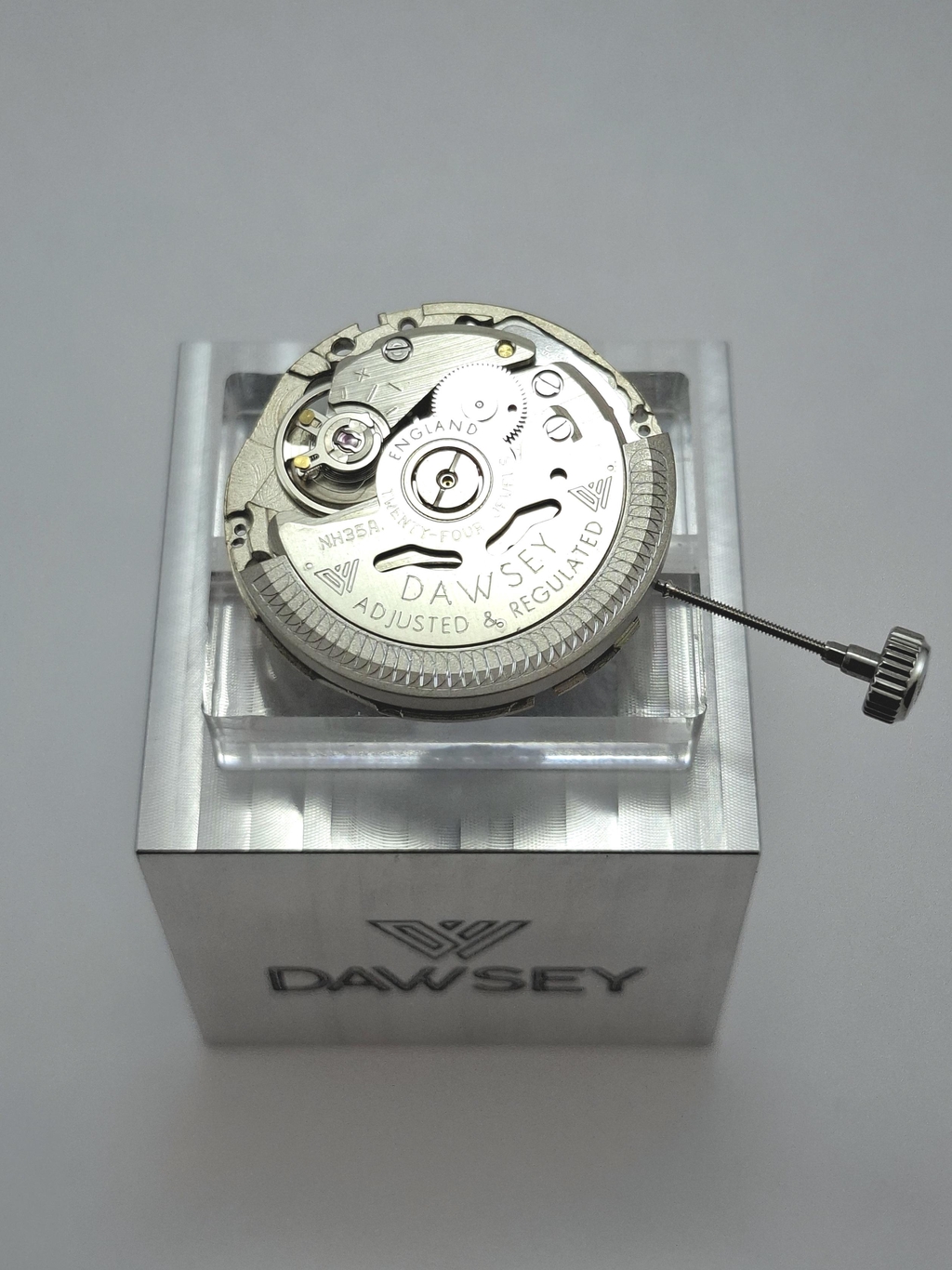

  • SSI/TMI calibre NH35A 12 ligne automatic self-winding mechanical movement. Specifically chosen by us after extensive testing, for its robustness, reliability, and accuracy.
  • Adjusted and regulated in-house.
  • 24 jewels.
  • 21,600 beats per hour.
  • 41 hour power reserve.
  • Diashock anti-shock system.
  • Anti-magnetic to ≧4,800 amperes per metre DC.
  • Quick-set date function.
  • “Hacking” seconds function, to set the time with precision.

Strap/Bracelet

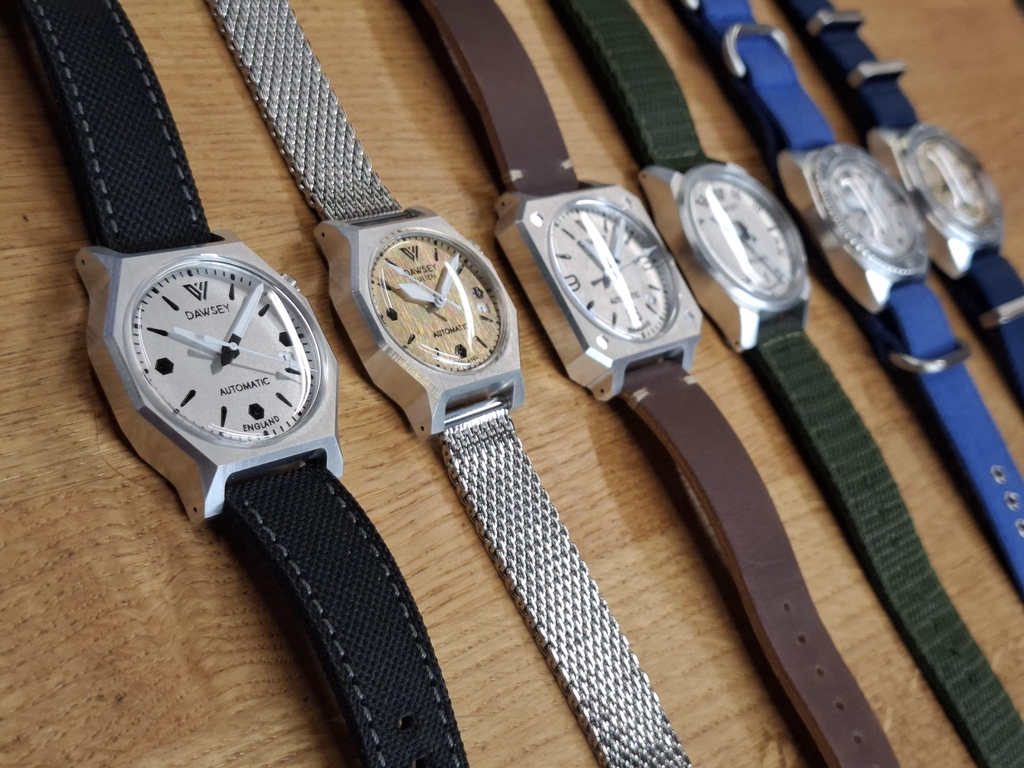

  • Available in a range of selected strap/bracelet options to suit any occasion; Black Canvas, Brown Leather, Green Nylon, and Stainless Mesh, all in 20mm width.
  • Fitted to the case with heavy duty 2mm stainless steel double flanged spring bars.
  • Our straps/bracelets are also available separately, as well as spare spring bars, and spring bar removal tools, so you can easily change the look of your watch to suit the occasion (all available on the accessories page of the website).

Box

  • Each Model 135 is supplied in its own rugged travel case, incorporating a hard crush-proof ABS (Acrylonitrile Butadiene Styrene) textured outer shell, with a soft shock absorbent foam liner.
  • Includes signed guarantee card with guarantee information, inspection record, and digital operation instructions.
  • Also in the box you will find a small glass vial filled with some of the machining swarf from the production of your actual watch, which makes for a unique memento, emphasising the craftsmanship and in-house manufacturing process behind your watch.

Care Notes

  • While the material used for the case is tough and strong, it can pick up scratches and dents with use. We believe that the material chosen offers excellent properties of strength while remaining lightweight and comfortable to wear. Case polishing wool (available on the accessories page of the website) can be used to remove light scratches. We build our watches to be worn and enjoyed, and believe that every scratch tells a story!
  • Acrylic crystals are incredibly strong and shatter resistant. However, they can pick up scratches with use. It is relatively easy to polish out scratches using Polywatch (available on the accessories page of the website) and a soft cloth, if you wish.
  • Every watch is vacuum leak tested to -760mm of mercury, which is equivalent to 1 bar, or 10 meters (33 feet) of water pressure resistance. This level of test is suitable for exposure to handwashing and rain, but we do not guarantee or recommend full submersion i.e. swimming.

Availability

Each DAWSEY watch is made to order. The current lead time is typically 4-6 weeks from order.

Order Now

How a DAWSEY Watch is Made

From raw material to finished product, see what it takes to create a DAWSEY watch from start to finish.

Watch the Video
